Smart Sodium Hypochlorite System

Suitable for: Water Plant Disinfection Solutions (large equipment), Wastewater Plant Disinfection Solutions

Telephone：+86-13372145285 E-mail：jonzo@jonzo.cn

Technical Specifications

Item	Specification	Remarks
Available Chlorine Output	500 g/h – 50,000 g/h (customizable)	Covers needs from county/town water plants to large water plants
Electrode Material	Pure titanium substrate + Ru-Ir coating	Corrosion-resistant, long lifespan
Chlorine Concentration	5–8 g/L (sodium hypochlorite solution)	Ready to dose without dilution
Electrolytic Cell Type	Tubular / Plate bipolar electrolytic cell	Fewer connections, low power consumption
Salt / Power Consumption	Salt: 3.5 kg/kg; Power: 4.4 kW·h/kg	Industry-leading level
Power Supply	220V / 380V, power configured by model	Built-in rectifier power supply
Core Safety Features	Automatic hydrogen discharge, water softening system, anti-crystallization dosing	Ensures safe operation

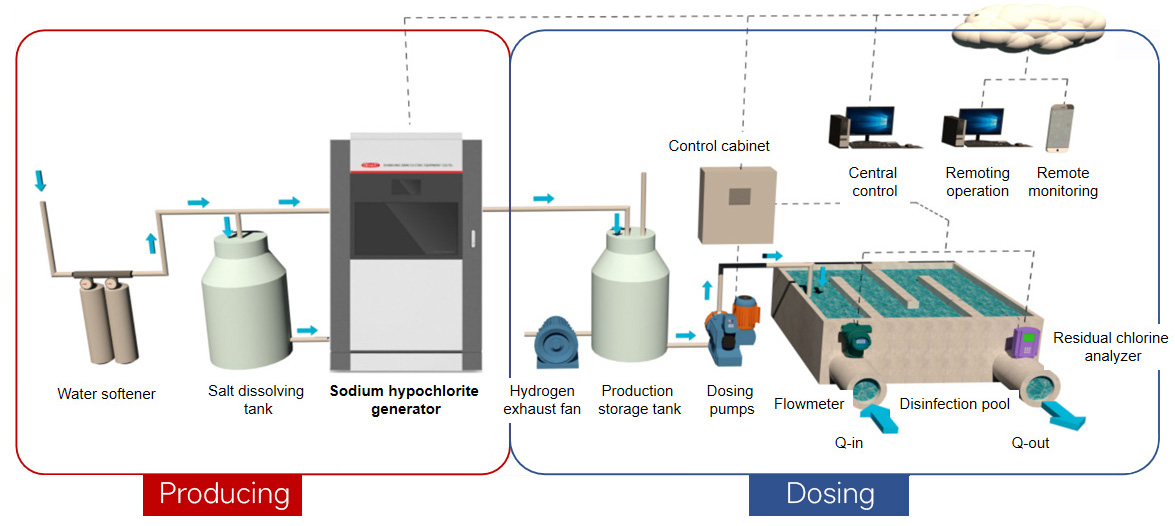

Water Softening — Removes water hardness, reduces scaling, automatic regeneration.
Salt Dissolving Tank — Dissolves food-grade salt into saturated brine.
Electrolyte Preparation — Dual closed-loop control for precise on-line preparation of 2–3% dilute brine.
Electrolytic Cell — Dilute brine enters the electrolytic cell and undergoes electrolysis under DC power.
Reaction — NaCl + H₂O → NaClO + H₂↑.
Storage & Dosing — The generated sodium hypochlorite solution is stored in a tank and precisely dosed to the disinfection point by metering pumps.
Hydrogen Discharge — By-product hydrogen is diluted to a safe concentration by a fan and discharged outdoors.

Site Requirements
— Dedicated equipment room, good ventilation, level floor with drainage trench.
Environmental Requirements
— Temperature 5°C–40°C, humidity <80%.
Utility Requirements
— Nearby 220V/380V power supply, DN20–DN50 water inlet and drain outlet.
Safety Requirements
— Hydrogen exhaust pipe must lead directly outdoors at a high point. Hydrogen alarm required in the equipment room.

Comparison	jonzo Smart Sodium Hypochlorite Generator	Traditional Chemical Dosing / Standard Electrolysis Equipment
Raw Material & Safety	Food-grade salt electrolysis, on-site generation, no hazardous chemical risk	Purchased liquid chlorine or sodium hypochlorite — risks of transpo
Intelligence	Fully automatic operation, AI predictive dosing algorithm, linked with water quality	Mostly manual or timed dosing, delayed response
Operating Cost	Low raw material cost	High long-term chemical procurement costs
System Integration	Standard water softening, automatic hydrogen discharge, IoT remote transmission	Single function, requires additional supporting equipment
